Import and Export Dashboards

Export Dashboard

To export a dashboard in Dash Studio:

  1. Select the dashboard to export from the dashboard list.
    Note: The Export icon) is enabled only when you select a dashboard from the dashboard list.
  2. Click Export when available in the dashboard toolbar. The exported dashboard is generated as a JSON file on your system. You can rename the downloaded file later.

Export Dashboard with Edit Permissions

To export the selected dashboard with Edit permissions:

  1. Right-click on the selected dashboard.
  2. Select Export Export Icon icon from the dropdown. The exported dashboard is generated as a JSON file on your system.

Import Dashboard

To import a previously exported dashboard file in Dash Studio:

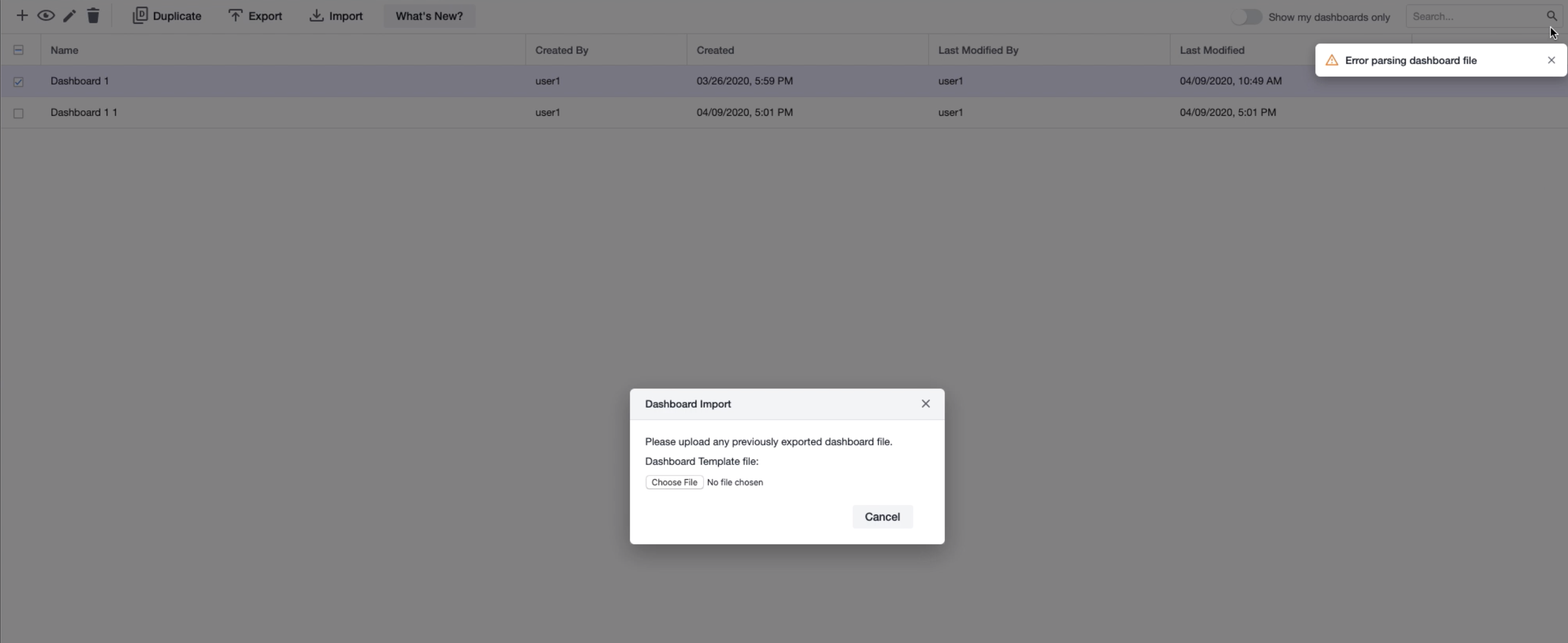

  1. Click Import Import Icon to display the Custom Dashboard Import dialog.
  2. Click Choose File and navigate to the previously exported JSON file that you want to import.
  3. Click Open.
  4. Click Import to open the imported dashboard and display it with a new name.

Import Dashboard with Edit Permissions

To import the selected dashboard with Edit permissions:

  1. Right-click on the selected dashboard.
  2. Select Import Import Icon from the dropdown.
  3. Click Choose File to navigate to the dashboard file to import.
  4. Click Open.
  5. Click Import to open the imported dashboard and display it with a new name.
    Note:

    These errors may display when you try to import a dashboard file:

    • Parsing error when you import a bad or malformed dashboard file.
    • File Not Found error when you import a dashboard from another Controller.
